Home / Projects / Virgin Voyages

Virgin Voyages’ Scarlet Lady cruise ship

Lighting Design by Cinimod
Photography by Virgin Voyages

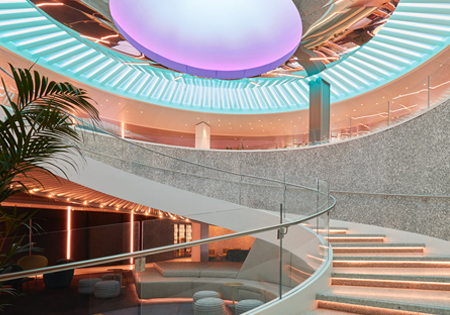

Cinimod studio specified Radiant’s 3D LED Flex 40 IP20 RGBW System to illuminate the dome of the atrium of Virgin Voyages’ Scarlet Lady cruise ship.

Each 100 mm module of Radiant’s 3 dimensionally flexible RGBW LED linear modular lighting system comprises of a bespoke cluster array of 4x RGBW Luxeon Z LEDs with a highly efficient colour-blending elliptical beam Gaggione lens.

Each module is individually addressable, with 4 DMX addresses per module.

The articulated modular system is fully flexible in 3 dimensions, and is ideal for the lighting of domes and other curved architectural features. Adjustable angle brackets allow the modules to be individually adjusted on-site by hand to aim the lit effect precisely.


3D LED Flex 40 IP20 RGBW System



3 dimensionally flexible RGBW LED linear modular lighting system

Custom RGBW LED arrays with colour- blending elliptical beam Gaggione lenses. 4 DMX addresses per 100 mm module.
Up to 50 Watts per Mtr
