Home / Projects / Quay Club

Quay Club, Canary Wharf, London

Lighting design and project photography by MBLD

A project specific version of the Euclid 60 system was designed in collaboration with MBLD for the Quay Club in Canary Wharf, London.

Matching in-ground IP68 and ceiling-mounted downlight IP66 versions were created. The LED linear lighting system comprises of a high-output LED light engine and a custom 3-ply opal diffuser, which runs from end to end, providing long seamless lines of light with no gaps between individual luminaires.

Custom right-angle corner fixtures were also created - ensuring that the single unbroken seamless line of light was able to follow the entire perimeter of the atrium.

The fixtures are installed into the stainless steel housings and held in place with spring clips. There are no visible fixings once installed - allowing the system to integrate into the architecture as unobtrusively as possible. The stainless steel trim has a mirrored finish, to match the mirrored ceiling of the building.

Integral line voltage AC drivers allow for ease of wiring. IP68 connectors join the fixtures on-site and fit neatly within the housing.

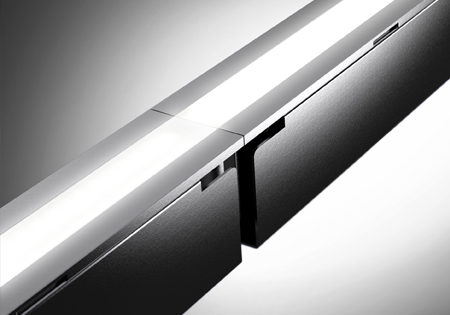

Euclid 60 System



Matching in-ground IP68 and ceiling- mounted downlight IP66 versions. LED linear lighting system with high-output LED light engine and custom 3-ply opal diffuser. the custom 3-ply opal diffuser runs from end to end, providing long seamless lines of light with no gaps between individual luminaires

This product is not currently available in the United States
