Home / Products / Euclid 20 IP20

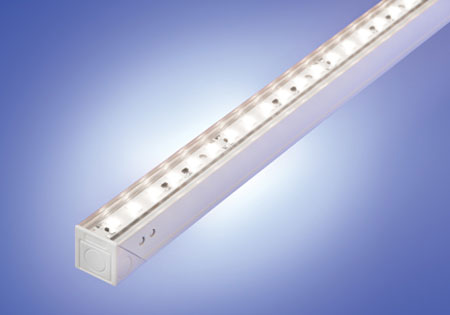

Euclid 20 IP20

LED Linear Lighting System

The Euclid 20 system was originally developed with DPA in Dubai for use on residential projects as a simple to install, cost effective linear lighting system. The 16 Amp plug together connector system, which fits inside the body extrusion, allows up to 36 ft (11 mtrs) to be lit from a single feed point without dark gaps between strips.

Designed for use in both indirect cove lighting applications and also, with the addition of a linear lens and optical films, for wall grazing and wall washing.

The system incorporates the same medium power LEDs used in the Shard and Euclid 12 so that all these systems can be used together. Up to 1,000 lumens per ft (3,500 lumens per mtr) for the high-output version. Clear window, Opal and Dot free opal and clear are available along with RGBW and dynamic white light versions.

The system can be supplied in any length up to 8.3’ (2.5 mtrs) with the smallest cutting module based on 2” (50 mm) LED pitch.

Contact Radiant for any additional information.
