Home / Products / 3D LED Flex 200 IP20

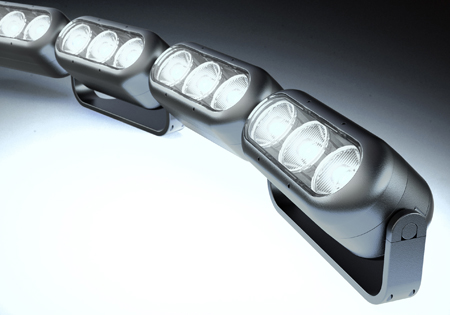

3D LED Flex 200 IP20


Modular, 3D flexible LED interior linear lighting system



The 3D LED Flex 200 IP20 system has been developed for use in a wide variety of large-scale interior architectural lighting projects requiring wall grazing and wall wash lighting where the building surfaces are non-linear with curved profiles and facades.

The patented articulated ball-joint system joining the heat-sink modules allows the system to follow complex curved building profiles.

The latest and largest addition to the range, the 3D LED Flex 200 can be run at up to 38 Watts per ft (125 Watts per mtr), providing up to 3353 lumens per ft (11,000 lumens per mtr).

Each 7.9” (200mm) long module comprises of 3 x arrays of 4 x RGBW Luxeon-CZ LEDs with highly efficient Gaggione colour-blending lenses.

Integral AC to DC constant current drivers allow long lengths to be powered from a single power feed. Dimming interfaces include DALI, DMX, and 1-10V.

The system has no visible fixings and anti-glare snoots provide excellent glare control.
