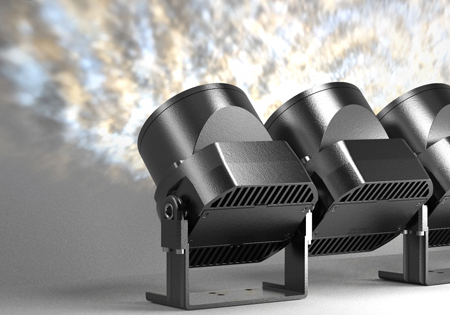

3D LED Flex 100 WE System IP 66 is a 3D Flexible, DMX controlled, dynamic LED effect lighting system. Decorative, dynamic lit-effects are achieved using a combination of an LED matrix of various colour temperatures and colours, complex DMX controlled dimming sequences, and textured glass panels.

Each module incorporates an 8 LED light engine, one or two low voltage 4 channel DMX drivers and a textured glass panel optic.

The patented articulated ball-joint system joining the heat-sink modules allows the system to bend and twist in 3 dimensions on-site, allowing it to follow complex curved building profiles, making it ideal for illuminating domes, columns, and any other curved architectural features. Adjustable-angle brackets allow for the lit effect to be aimed once installed.

Customised lit effects can be achieved by adjusting the DMX controlled dimming sequences, the combination and configuration of the various LEDs and the type of textured glass panel used.

The system provides up to 2,438 lumens per ft (8,000 lumens per mtr), depending on the mix of LED colours and colour temperatures and the textured glass used. The lumen output varies during the dimming control sequence.

As the Dynamic Water Effect does not rely on any moving parts, the system has a long working life of up to 100,000 hours, as the LEDs are not run at full output for most of the dimming sequence.

Customisable anti-glare accessories and mounting bracketry can be specified to meet project requirements.
